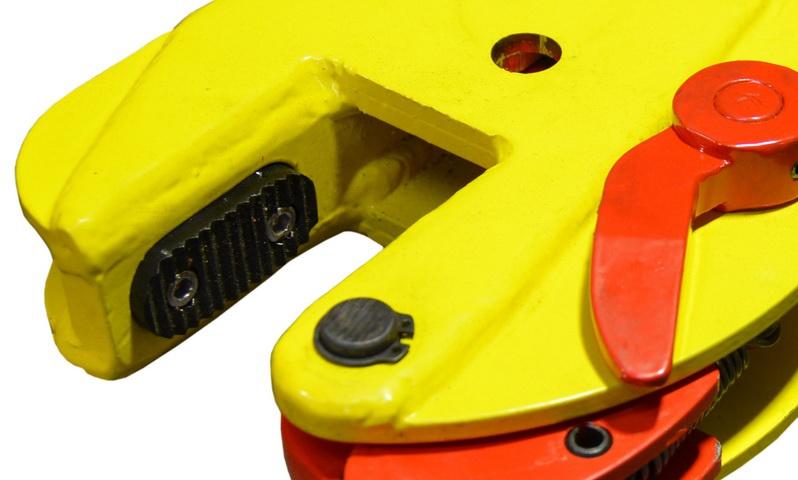

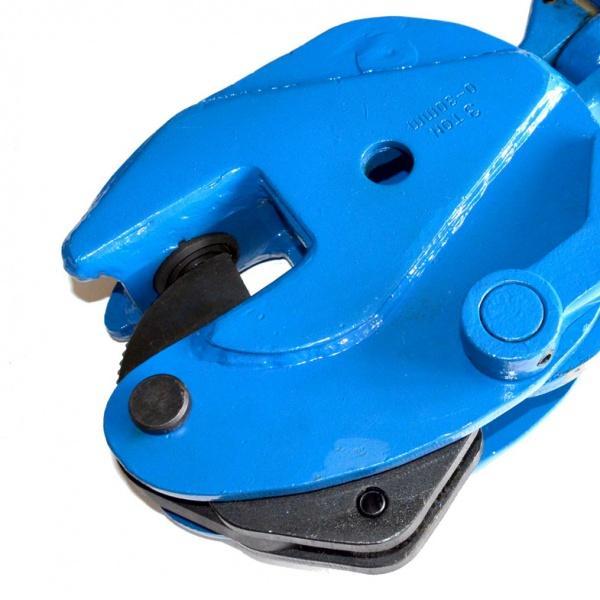

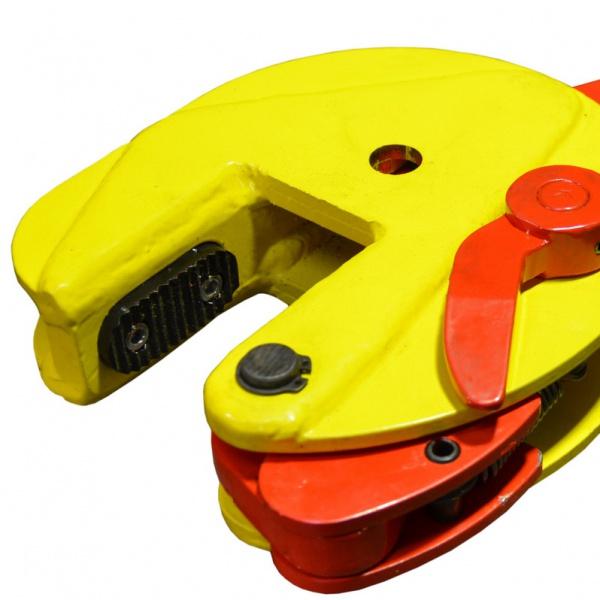

The gripper is designed for vertical engagement, lifting and moving cast metal. Capture can work singly (when lifting short sheets of metal) and in pairs (when lifting long sheets of metal).
To engage the vertical capture of sheet metal can be used rope sling type 1SK, 2SK or 4SK, or chain sling type 1STs, 2STs or 4STs. It is also possible to use vertical grips of sheet metal as components when lifting sheets of metal with a traverse.
Модель DSQ1 DSQ2 DSQ3 DSQ5
Робоче навантаження (т) 1,0 2,0 3,0 5,0
Товщина листа (мм) 0-16 0-22 5-30 16-50
Розміри A (мм) 59 61 72 82
B (мм) 12 16 16 20
C (мм) 16 23 28 33
D (мм) 45 55 60 70
E (мм) 32 45 55 70
F (мм) 122 165 195 250
G (мм) 73 90 110 135
H (мм) 277,5 340 374 458
I (мм) 155 190 227 275
Маса (кг) 3,5 6,3 10,5 19,3
