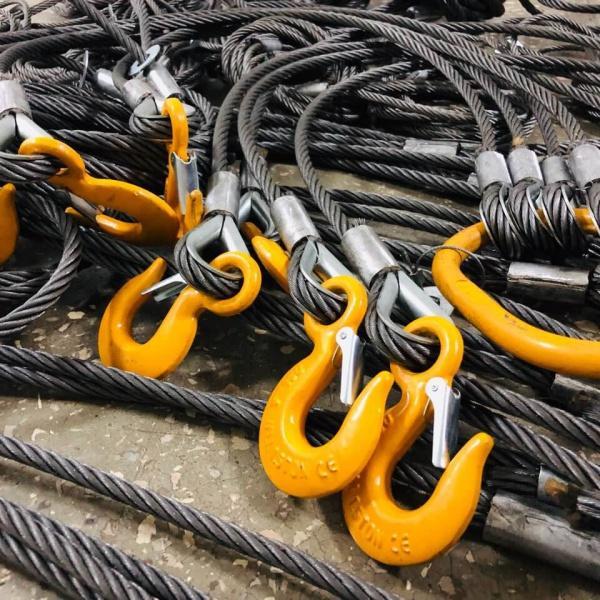

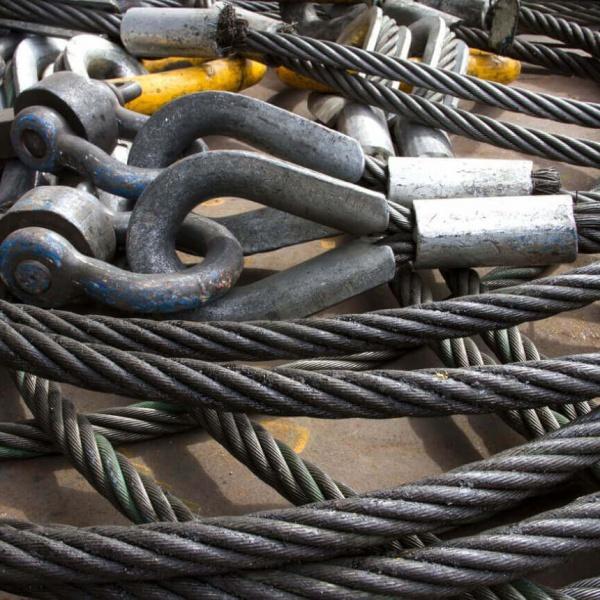

Steel rope slings are used to move heavy, bulky loads. Slings appropriate to the weight and nature of the load to be lifted must be used to sling the load to be lifted. Laying the ends of the ropes is done by crimping with an aluminum sleeve or braiding. In the process of making rope slings, a modern Hydropress is used to form a loop of a rope sling by pressing with aluminum bushings.
Crimping is carried out with imported aluminum bushings according to EN 13411-3, which are lighter than domestic bushings manufactured according to GOST 4784, and have smaller dimensions at the same loads. In the manufacture of slings used hooks made of alloy steel with a safety factor of 5: 1 with an eyelet and a plate lock type 320A. In comparison with the hooks made in accordance with GOST 2557-82, hooks 320A at identical loading capacity with domestic are smaller in dimensions. Rope slings can be completed with various hobbies and accessories, production corresponds to DSTU B B.2.8-10-98, production corresponds to DSTU B B.2.8-10-98, the rope of GOST 7668-80 is used. Aluminum sleeve for crimping the rope en 13411-3. Hook plow SL-130.
Діаметр каната 1СК 2СК 4СК СКП СКК
(мм) (т) (т) (т) (т) (т)
8,1 0,63 0,80 1,60 0,63 1,25
9,7 0,80 1,00 2,00 0,80 1,80
11,5 1,25 1,60 3,20 1,25 2,50
13,5 1,60 2,00 4,00 1,60 3,20
15,0 2,00 2,50 5,00 2,00 4,00
16,5 2,50 3,20 6,30 2,50 5,00
18,0 2,80 5,60
20,0 3,20 4,00 8,00 3,20 7,00
22,0 4,00 5,00 10,00 4,00 8,00
23,5 5,00 6,30 12,50 5,00 10,00
27,0 6,30 8,00 16,00 6,30 12,50
31,0 8,00 10,00 20,00 8,00 16,00
33,0 10,00 12,50 25,00 10,00 20,00
39,5 12,50 16,00 32,00 12,50 25,00
42,0 16,00 20,00 40,00 16,00 32,00
46,5 20,00 25,00 50,00 20,00 40,00

Deciphering the designation - 4SK-1,6 / 1500;
4SK - a four-branch rope sling;
1,6 - load capacity of a sling (t); 1500 - length of the sling (mm).
