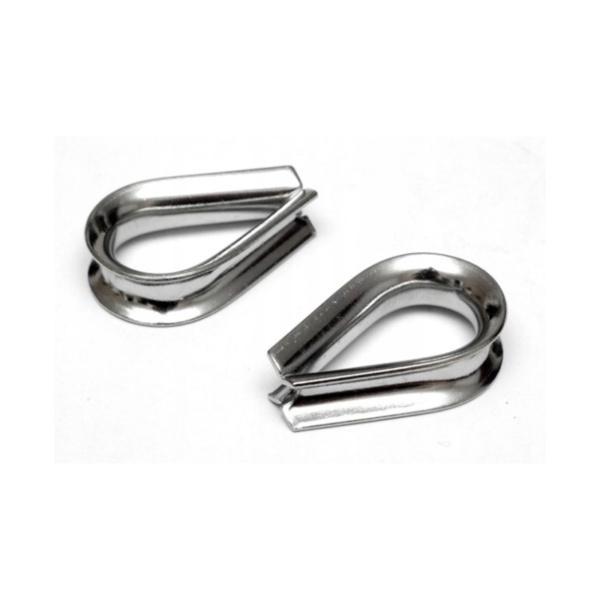

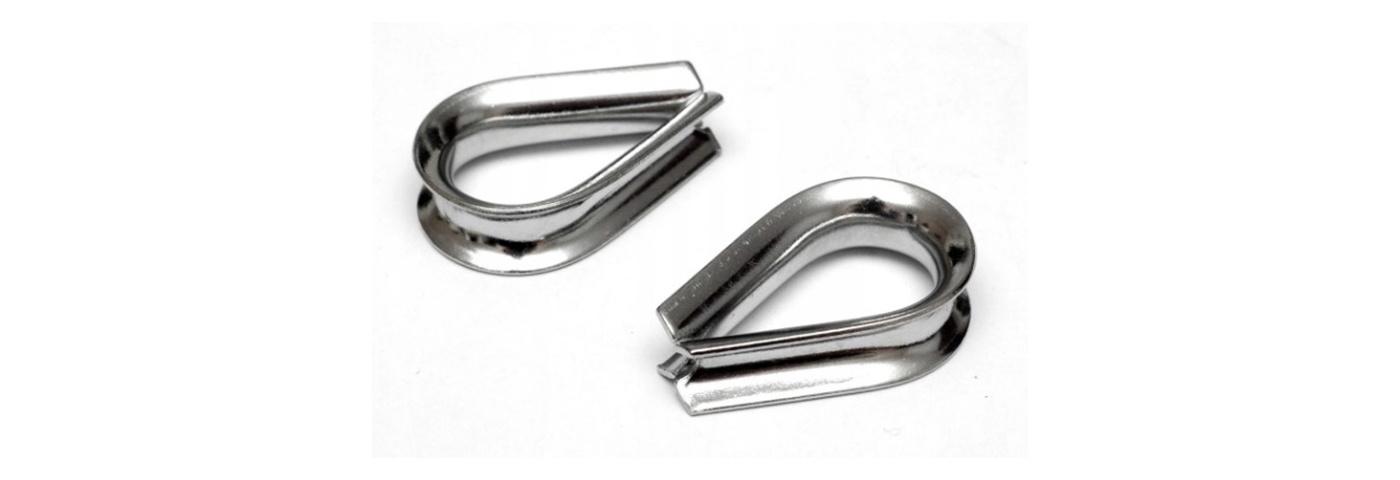

Thimbles are intended for installation on a cable at production of a loop on its end. Protects the cable from abrasion, makes the loop smoother. Widely used in lifting devices. Thimbles are made of carbon steel and galvanized. The size is determined by the diameter of the cable used. Thimbles DIN 6899-B. Ship thimbles for plant ropes. Ship thimbles for steel cables.

Thimbles DIN 6899-B

DIN 6899-B can be installed on both steel and vegetable and synthetic ropes. The size is determined by the diameter of the rope used.

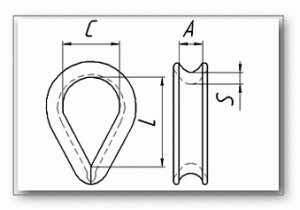

Діаметр каната (мм) A L C S Маса за 100 (шт)
(мм) (мм) (мм) (мм) (мм) (кг)
4 5 23 14 1,9 1
9 7 28 18 2,4 1,9
7 8 32 20 2,8 3
9 10 36 24 3,1 4,7
11 12 45 28 3,3 6,8
13 14 51 32 3,7 10
15 16 56 36 3,6 14,5
16 17 61 38 4,7 16
18 20 72 45 5,7 29
20 22 80 50 5,7 32
22 24 90 56 6,5 47
26 28 112 70 8 80
30 32 128 80 8 123
32 34 152 95 8,5 156
36 38 176 110 8,5 192
38 40 184 115 10,5 292
42 45 240 150 10,5 384

Ship thimbles for plant ropes

The use of thimbles protects the rope and grippers from abrasion. The thimbles differ in the inner diameter of the circle and each thimble is accordingly assigned to a specific rope diameter.

Навантаження,

що допускається (тс)

Розміри (мм) Теоретична

маса (кг)

Довжина кола каната найбільша Діаметр каната найбільший B D L R, не більше R r S h
0,1 30 9,6 13 16 30 4 7 5 2 4 0,02
0,2 40 12,7 17 22 40 6 9 7 3 6 0,05
0,3 50 15,9 22 28 50 6 12 9 4 7 0,09
0,5 65 20,7 26 34 60 10 14 11 5 9 0,18
0,6 75 23,9 30 40 70 10 16 13 6 11 0,31
0,8 90 28,7 34 46 80 12 18 15 7 13 0,45
1,0 100 31,8 38 52 90 16 20 17 8 15 0,72
1,2 115 36,6 42 58 100 16 22 19 9 16 0,90
1,6 125 39,9 48 62 110 20 26 22 9 18 1,00
2,0 150 47,8 56 78 140 20 29 26 11 22 1,90

An example of the symbol of a thimble type P size 1.0: thimble P1.

Ship thimbles for steel cables

Protects the cable from abrasion, makes the loop smoother. Widely used in lifting devices. Thimbles are made of carbon steel and galvanized. The size is determined by the diameter of the cable used.

Навантаження,

що допускається

(тс)

Розміри (мм) Теоретична

маса (кг)

Діаметр каната найбільший B D L R R, не більше r S h
0,05 2,2 4 6 10 2,5 1,6 1,5 2,0 1,5 0,03
0,1 3,3 6 11 18 3,0 2,5 2,0 2,5 2,5 0,01
0,2 4,2 8 16 27 4,0 3,0 3,0 3,5 3,5 0,02
0,3 5,5 8 18 30 4,0 3,0 3,0 3,5 3,5 0,03
0,5 6,7 10 22 36 5,0 4,0 4,0 5,5 4,5 0,06
0,8 8,3 13 27 45 6,5 5,0 5,0 7,0 5,0 0,12
1,2 9,7 15 30 50 7,5 8,0 5,5 8,0 7,0 0,20
1,6 11,5 17 35 58 8,5 8,0 6,5 11,0 8,0 0,32
2,0 13,5 19 41 68 9,8 8,0 7,5 12,0 9,0 0,50
2,5 15,5 22 46 77 11,0 10,0 8,5 13,0 10,0 0,70
3,2 17,5 25 52 86 12,5 10,0 9,5 15,0 11,0 1,00
4,0 19,5 27 57 95 13,5 12,0 10,5 16,0 12,0 1,28
5,0 22,5 31 66 115 15,5 12,0 12,0 18,0 14,0 1,72
6,3 26,0 36 73 122 18,0 16,0 13,5 21,0 16,0 2,95
8,0 29,0 39 82 135 19,5 16,0 15,5 23,0 17,0 3,80
10,0 32,0 43 82 152 21,5 20,0 17,5 26,0 19,0 4,73
12,5 36,5 46 98 162 23,0 20,0 19,5 28,0 21,0 6,300
16,0 41,0 52 110 185 26,0 25,0 22,0 32,0 23,0 9,00
20,0 46,5 62 138 230 31,0 25,0 25,5 40,0 29,0 16,20
25,0 53,5 70 162 270 35,0 32,0 30,0 46,0 34,0 19,90
32,0 58,5 74 187 292 37,0 40,0 32,5 50,0 37,0 30,00
40,0 66,5 78 190 315 39,0 40,0 34,0 52,0 39,0 36,50

An example of the symbol of a thimble type C size 2.1: thimble C 2.1
